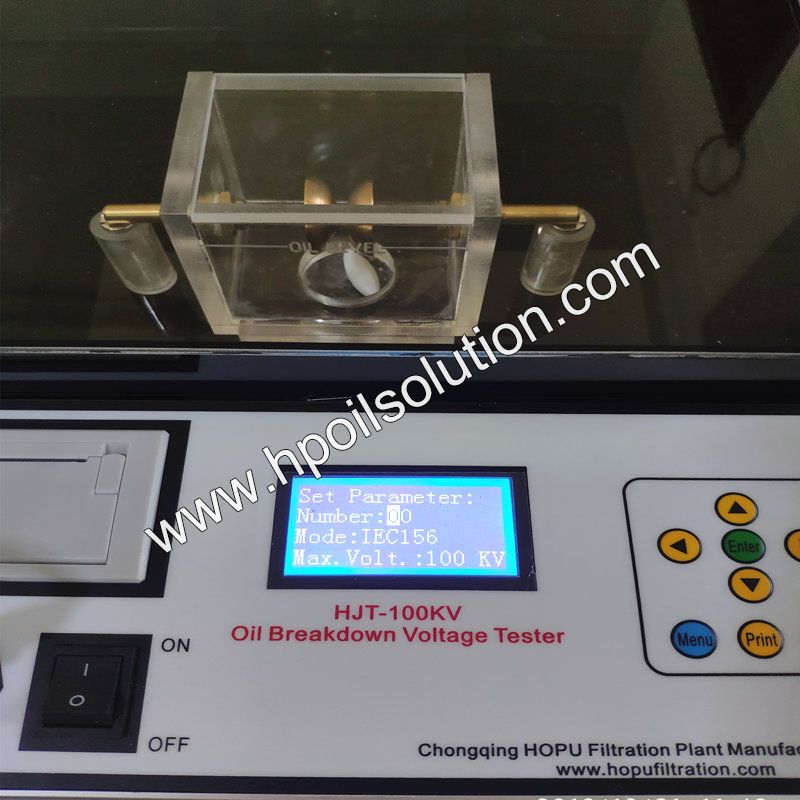

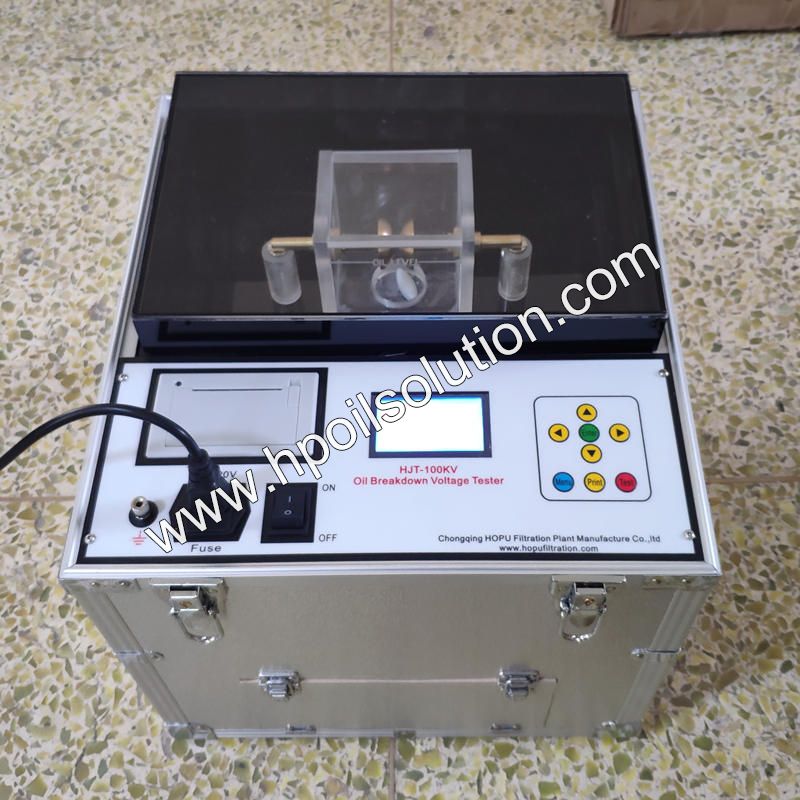

Portable Transformer Oil Breakdown Voltage Tester

HJT-100KV Oil Breakdown Voltage Analyzer can test voltage from 0 to 60kV, 80kV, or 100 kV for testing the dielectric strength of insulating oil in accordance with IEC156 standard

HTJ-100KV Insulating oil testers are fully automatic micro controller based system, completely self-contained, compact and portable giving smooth variable test voltage from 0 to 60kV, 80kV, or 100 kV for testing the dielectric strength of insulating oil in accordance with IEC156 standard

1. Output voltage : 0~100kV

2. Voltage distortion rate: <3%

3. Voltage raising speed: 0.5~5 KV/S (adjustable)

4. Standing time: 15min (adjustable)

5. Boosting interval: 5 min (adjustable)

6.Boosting frequency: 1~9 time(s) (optional)

7. Booster capacity: 1.5KVA

8.Measuring accuracy: ±3%

9. Supply voltage: AC220V±10%

50Hz±1 Hz
