This guide explains low-temperature silk screen printing in tempered glass production, detailing its workflow, advantages, limitations, and applications in kitchen appliances, furniture, and electronics. Discover why brands choose LTSSP for cost-effective, high-resolution customization.





What Is Low-Temperature Silk Screen Printing in Tempered Glass Manufacturing?



In the competitive world of tempered glass production, low-temperature silk screen printing (LTSSP) has emerged as a game-changer for brands seeking vibrant, durable, and cost-efficient customization. Unlike traditional high-temperature methods, LTSSP uses UV-curable or solvent-based inks to create intricate designs on glass without exposing it to extreme heat. This article explores the science behind LTSSP, its production workflow, applications across industries, and why it’s becoming the go-to choice for appliance and furniture manufacturers.



Low Temperature Silk Screen Print Tempered Glass Items:





please contact us immediately





---



1. What Is Low-Temperature Silk Screen Printing?



Low-temperature silk screen printing is a digital printing technique that applies decorative or functional designs onto tempered glass surfaces using inks cured at temperatures below 300°F (150°C). This method avoids the high-heat cycles (600°F+) required in ceramic frit-based printing, making it ideal for pre-tempered glass or post-tempering applications.



Key Components of LTSSP



• Inks: UV-curable acrylics, solvent-based polymers, or hybrid formulations.

• Substrate: Tempered glass (soda-lime or borosilicate).

• Curing Methods: UV light exposure (200–400 nm) or controlled heat drying.



Why LTSSP Stands Out



• Design Flexibility: Supports fine details (0.2mm line width), gradients, and full-color graphics.

• Material Safety: No risk of glass warping or stress fractures during printing.

• Eco-Friendly Options: Water-based solvents and low-VOC inks reduce environmental impact.



---



2. The Production Process of Low-Temperature Silk Screen Printing

The LTSSP workflow combines precision engineering with modern chemistry to achieve lasting results. Here’s a step-by-step breakdown:



Step 1: Glass Preparation

• Cleaning: Remove dust, oils, and residues using ultrasonic baths or alkaline solutions.

• Pre-Treatment: Apply adhesion promoters (e.g., silane coatings) to enhance ink bonding.



Step 2: Screen Preparation

• Stencil Design: Create a polyester or stainless-steel mesh screen with the desired pattern.

• Emulsion Coating: Coat the screen with a photosensitive emulsion and expose it to UV light to harden the design.



Step 3: Ink Application

• Printing: Press ink through the screen onto the glass using a squeegee.

• Multi-Layer Printing: Apply colors sequentially for complex designs (e.g., logos with gradients).



Step 4: Curing

• UV Curing: Pass the glass under UV lamps (1–5 seconds exposure) to polymerize the ink.

• Thermal Curing: For solvent-based inks, bake at 150–300°F (65–150°C) for 10–30 minutes.



Step 5: Quality Control

• Adhesion Testing: Use cross-hatch tape tests to verify ink durability.

• Color Accuracy: Compare prints to Pantone standards under controlled lighting.



Step 6: Post-Processing (Optional)

• Protective Coatings: Add anti-scratch or anti-fingerprint layers.

• Packaging: Wrap panels in anti-static film to prevent damage during shipping.











---



3. Applications of Low-Temperature Silk Screen Printed Tempered Glass

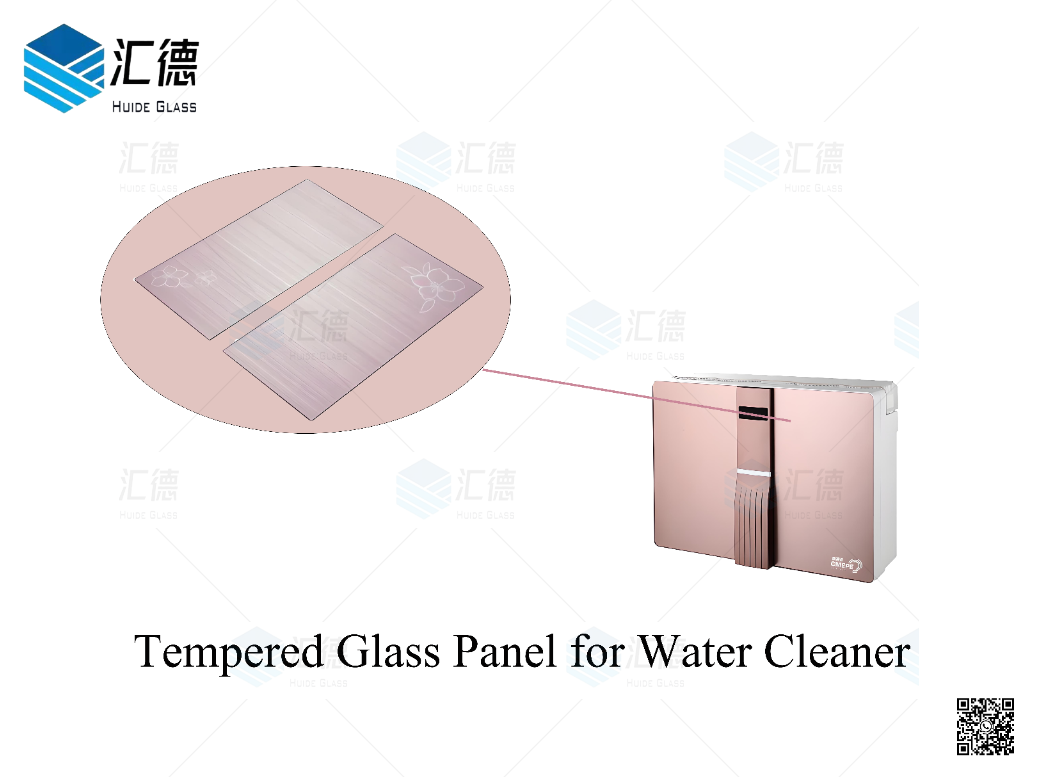

Home Appliances

• Microwave Control Panels: High-resolution buttons and indicators printed with UV-resistant inks.

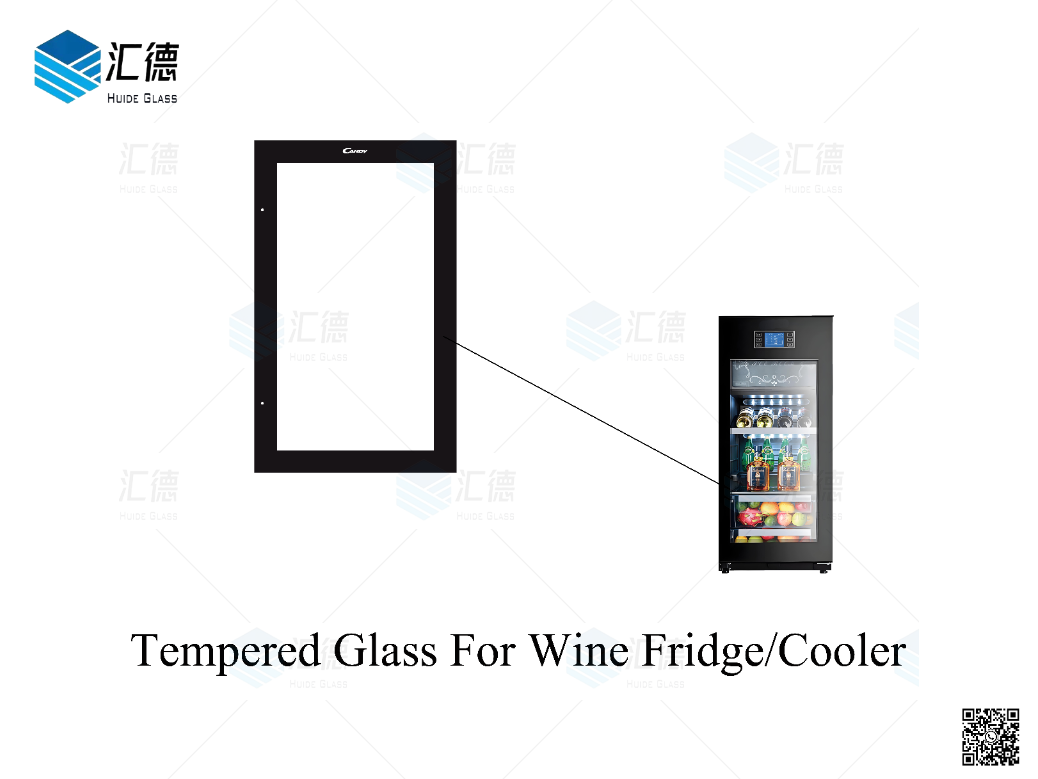

• Refrigerator Decals: Custom-branded glass shelves or door panels with metallic finishes.

• Top Load washing machine lid: Printed with various colorful graphic, low temperature silk screen print tempered glass panel is widely used as the top load washing machine door sheet.



Furniture & Interior Design

• Glass Tabletops: Floral patterns or geometric designs for modern dining tables.

• Cabinet Doors: Frosted glass with subtle logos for kitchen cabinets.

• Shower Partitions: Anti-slip warnings or decorative motifs on bathroom glass.



Electronics & Smart Devices

• Smart Mirror Displays: Semi-transparent icons for IoT-enabled mirrors.

• LED Light Panels: Edge-lit glass with printed diffuser patterns.

• Retail Display Glass: QR codes or promotional graphics for store fixtures.











---



4. Advantages of Low-Temperature Silk Screen Printing



1. Cost Efficiency

• Lower Energy Costs: No high-temperature furnaces required.

• Reduced Waste: Minimal ink spillage compared to ceramic frit printing.



2. Design Versatility

• Vivid Colors: Achieve Pantone-matched hues and metallic effects.

• Fine Details: Print text as small as 2pt font for technical labels.



3. Faster Turnaround

• Rapid Curing: UV inks set in seconds, speeding up production.

• No Tempering Dependency: Print on pre-cut or pre-tempered glass.



4. Compatibility with Sensitive Substrates

• Laminated Glass: Safe for interlayers (e.g., PVB or SGP films).

• Tinted Glass: No risk of color distortion from heat.



---



5. Limitations of Low-Temperature Silk Screen Printing



1. Lower Heat Resistance

• Max Temperature: 300°F (150°C), unsuitable for ovens or stovetops.

• UV Degradation: Prolonged sunlight exposure may fade colors over time.



2. Durability Concerns

• Scratch Sensitivity: Requires protective coatings for high-touch surfaces.

• Chemical Vulnerability: Harsh cleaners (e.g., ammonia) can damage inks.



3. Higher Initial Tooling Costs

• Screen Setup: Custom stencils needed for each design variation.



---



6. Future Innovations in LTSSP Technology

• Self-Healing Inks: Nano-coatings that repair minor scratches.

• Hybrid Inks: Combining UV-curable vibrancy with ceramic-like durability.

• AI-Driven Printing: Automated defect detection during curing.



---



Conclusion

Low-temperature silk screen printing offers a unique blend of affordability, creativity, and efficiency for tempered glass customization. While it may not replace high-temperature methods in extreme-heat applications, its superiority in design flexibility and speed makes it indispensable for consumer electronics, furniture, and decorative glass. At Huide Glass, we specialize in tailoring LTSSP solutions to meet your brand’s exact needs—whether you’re prototyping a new appliance or scaling production for global markets.
